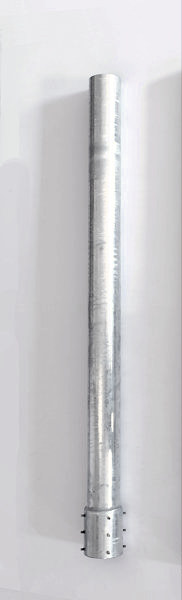

Street Light Pole 7m cylindrical 2 parts
Product number:
LS-ZM107Z-2
Product information "Street Light Pole 7m cylindrical 2 parts"
Luminaire pole, resistant to vandalism and environmental influences.
Hot-dip galvanised, weather and corrosion resistant according to DIN EN ISO 1461.
Additionally painted in any RAL colour (powder-coated) at an extra charge.
Steel pole S235 according to DIN EN 40-4.
With door 85 x 400 mm.
For mounting a floodlight or street light.
With earthing connection.
Dimensions:
h1 visible length: 7000 mm
h2 ground: 800 mm
Foundation depth: Approx. 900 mm
Pole top Ø : 60mm
d2 base Ø : Approx. 114 mm
Wall thickness s: Approx. 3 mm
* These masts are offered in different versions. The dimensions may vary.
The masts are very bulky. Delivery can only be made by a special truck. The freight costs are therefore expensive. If you order several masts, delivery costs will only be charged once.
If you order the luminaires from us, GEO-Technik will pay part of the transport costs for you.
Hot-dip galvanised, weather and corrosion resistant according to DIN EN ISO 1461.
Additionally painted in any RAL colour (powder-coated) at an extra charge.
Steel pole S235 according to DIN EN 40-4.
With door 85 x 400 mm.
For mounting a floodlight or street light.
With earthing connection.
Dimensions:
h1 visible length: 7000 mm
h2 ground: 800 mm
Foundation depth: Approx. 900 mm
Pole top Ø : 60mm
d2 base Ø : Approx. 114 mm
Wall thickness s: Approx. 3 mm
* These masts are offered in different versions. The dimensions may vary.
The masts are very bulky. Delivery can only be made by a special truck. The freight costs are therefore expensive. If you order several masts, delivery costs will only be charged once.
If you order the luminaires from us, GEO-Technik will pay part of the transport costs for you.
| Bauform: | zylindrisch |
|---|---|
| Gross weight (kg): | 75.0 |
| Masthöhe: | 7m |
| Net weight (kg): | 65.0 |
