For controlling RGB LED spotlights or other luminaires that can be controlled via DMX.There are 30 colour programmes available, which can be called up with the enclosed radio remote control.The programmes can be called up via the buttons on the unit or via the hand-held transmitter.Power consumption: 5WDMX output: XLR-3 socketPC interface: RJ45 connectorDimensions: 175 x 45 x 35mm
For controlling RGB LED spotlights or other luminaires that can be controlled via DMX.There are 30 colour programmes available, which can be called up with the enclosed radio remote control.The programmes can be called up via the buttons on the unit or via the hand-held transmitter.Power consumption: 5WDMX output: XLR-3 socketPC interface: RJ45 connectorDimensions: 175 x 45 x 35mm
External supply voltage 12V or 24V DC required depending on LEDs.LED voltage: 12V/24V3 control channels with max. 1.3A load capacity each.3 analogue inputs 0 - 10V or 1 - 10VLength 167mm, W 38mm, H 30mm
External supply voltage 24V DC required depending on LEDs.LED voltage: 24V3 control channels with max. 2A load capacity each.3 analogue inputs 0 - 10V or 1 - 10VLength 167mm, W 38mm, H 30mm
Dimmable with trailing-edge dimmer. For 12V lamps with total power 50 - 150 watts. Short-circuit protection, overload protection, over temperature protection with automatic restart. Operating voltage 220V - 230V AC 50/ 60Hz for serial wiring. Dimensions: 170 x 41 x 35 mm
Dimmable with trailing-edge dimmers.10W power handling ... 60W.Operating voltage 220V - 240V AC 50/ 60HzProtected against overload, short circuit and overheat.Maximum cable length of 2m to allow the lamps (emission)Dimensions 110 x 40 x 20mm
For halogen or LED lamps.Primary: 220 - 230V 50Hz Secondary: 12V max. 6 VACompact potted for indoor and outdoor use. With power cable and schuko plug. Output: Round 2-pin connector for 12V SchegoLux system
Ballast for DC or battery operation of sodium, MH metal halide or ceramic lamps 35W.Operating voltage 24V DC (short time 20V ... 30V DC)Current consumption: 1.72 amp (24V)Ambient temperature: -40°C ... +65°C.Ignition voltage 4.5 kVMetal housing openDimensions: l 110mm, w 110mm, h 50mmProtection degree - only for use in casings or lighting fixtures
Magnetic ballast for e.g. recessed ceiling luminaires.For HQI, HIT, CDM or sodium vapour lamps with 35W rated wattage.Incl. igniter.Access via 3-core cable with open ends,Lamp outlet via 3 individual cables.Fine-wire fuseTemperature cut-off,Operating voltage 220 - 240V 50HzProtection class: IP40 fully insulated - for indoor use onlyMark of conformity: F, CE, ENECDimensions: 143 x 122 x 62mm
To operate sodium, MH metal halide or ceramic lamps 50W in car, truck, boat or solar light.Small and rigid design.The unit must be mount on a heat-sink or on a metal housing, to reduce the operating temperature.Operating voltage 12V DC ... 24V DC (short time 10V ... 30V DC)Current consumption: 5 amp (12V), 2.46 amp (24V)Ambient temperature: -40°C ... +65°C.Ignition voltage 4.5 kVMetal housing hermetically closedDimensions: l 110mm, w 72mm, h 34mmProtection degree IP 66
Choke and compensation capacitor in waterproof housing.Optimised for Osram or Radium lamps.Supply voltage 400V/ 50HzLamp current: 8,8A or 10,3AMax. permissible length of connecting cable to headlamp: 50m.Please order igniter separately.Sturdy protective housing splash-proof, greyProtection class IP 65Dimensions: 480 x 130 x 140 mm
Flicker-free light. Energy-saving and negligibly low reactive current.28% energy saving compared to conventional ballast.Optional:Osram version 100Hz, exhibition goods with paint residues on the housing, but unused,or HF version, operating frequency: 120 Hz (resonance-free and flicker-free).Overtemperature protection.Max. Max. distance between ballast and lamp 2m.Operating voltage: 198 - 264V 50Hz - 60HzCurrent consumption: 0,72 APower factor: 0,95Temperature range: -15° ... +50°CAutomatic switch-off in case of lamp failure.Mount protected from moisture.Dimensions: 175 x 88 x 36mm
E.g. for recessed ceiling luminairesOperating voltage 220 - 240V 50HzFor indoor use only, IP40For HIT / CDM lamp 150W.incl. igniter.Dim.: L 250mm x W 70mm x H 75mm

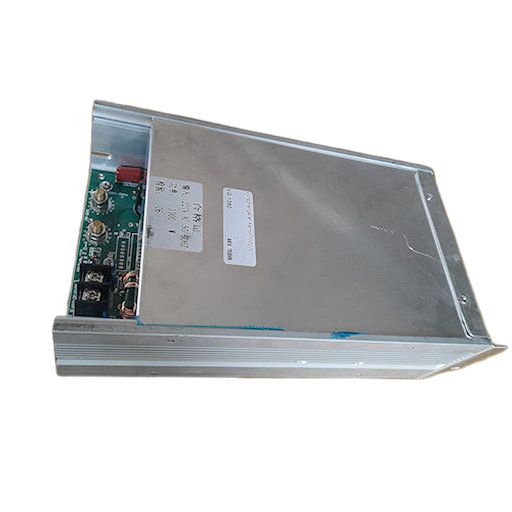

Closed aluminium profile housing.For operating metal halide lamps HQI, HID, HCI, CDM, as well as high-pressure sodium lamps 150W.Operating voltage 24V DCOperating current: 6.45AAmbient temperature: -30°C ... +65°CIgnition voltage 4.5 kVLow-flicker light. Energy-saving and negligible reactive current.With overload protection and automatic switch-off in case of lamp failure.Protection class IP54Dimensions: L 203mm, W 102.5mm, H 65mm
The luminaire accessory of the VIP90 family allows fluorescent lamps to be dimmed from 0 to 100% in conjunction with a suitable dimmer. At each period of the AC voltage, the VIP90 generates a strong pulse that safely ignites the fluorescent lamp. The ignition is therefore at 100Hz. A 4-wire cable is required to operate the luminaire. Only Leading-edge dimmers with at least 500W load capacity per channel are suitable.The advantages of VIP90 - Control from 0 to 100% (and vice versa) flicker-free - Always flawless ignition of the tubes, even when dimmed - No special lamps (lower costs) - No special ballasts - No additional ground load required (no energy loss) - Control ratio 1 to 10,000 ( depending on lamp type ).Operating voltage 220 - 230V, 50Hz - 60Hz Ambient temperature max. 60°C Different versions for PLC or LL available. e.g. VIP90 /3 = for fluorescent tubes TC-D 18W, TC-T 18W, PL-C 18W 4P, PL-T 18W 4P. The housing dimensions are constructed to fit into different fixture designs. Models are available for compact fixtures or bar fixtures.VIP90/3, tall shape Dimensions: L 220 mm, w 42 mm, h 28 mm.
