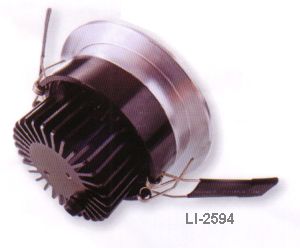

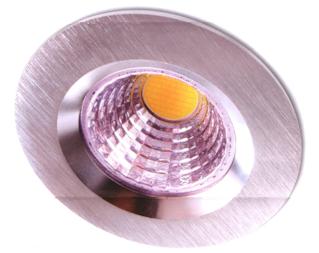

Recessed LED Downlight dimmable 8 Watt
Product number:
LI-2594
Product information "Recessed LED Downlight dimmable 8 Watt"
Very low heat emission.
Power LED bulb 8W from Epistar included.
Light intensity comparable with 35 Watt halogen light.
Light colour 2700K warm white (also 4000K neutral white on order).
Beam angle 60° very wide
Connected current: 350mA
Please order LED power supply or dimmable driver 350mA separately.
For brightness control we recommend a dimmable driver VS-LED354 and a phase cut-off dimmer
or up to 2 luminaires can be operated via a dimmable VS-LED707 driver with momentary-action switch.
Brushed aluminium surface.
Dimensions: Ø 78mm, recessed Ø 68mm, depth 45mm
Power LED bulb 8W from Epistar included.
Light intensity comparable with 35 Watt halogen light.
Light colour 2700K warm white (also 4000K neutral white on order).
Beam angle 60° very wide
Connected current: 350mA
Please order LED power supply or dimmable driver 350mA separately.
For brightness control we recommend a dimmable driver VS-LED354 and a phase cut-off dimmer
or up to 2 luminaires can be operated via a dimmable VS-LED707 driver with momentary-action switch.
Brushed aluminium surface.
Dimensions: Ø 78mm, recessed Ø 68mm, depth 45mm
| Energieklasse (EEK): | E |
|---|---|
| Gehäusefarbe: | silber, silbern |
| Gross weight (kg): | 0.0 |
| LED Betriebsstrom (mA): | 350mA |
| Leuchtmittel Typ: | LED |
| Lichtverteilung Winkel: | 60° |
| Montageart: | Deckeneinbau |
| Net weight (kg): | 0.0 |
| Systemspannung: | 12-230V |
| Watt Leuchtmittel : | 8W |
| Watt Total: | 8W |
Login
Skip product gallery
Zubehörempfehlung
VS-LED354
Only suitable for power LEDs with 350mA current requirement.Several such LED luminaires can be operated via this power supply.(series connection)Total LED power max. 9WSupply voltage 220 - 240 Volt AC 50 - 60HzDimmable via phase-angle dimmerSafety shutdown in case of short circuit and no-load operation.Dimensions: 120 x 40 x 28 mm
