Lighting Mast 10m with 4 LED floodlights 100W
Lighting Mast 10m with 4 LED floodlights 100W
Product number:
LS-ZM750
Product information "Lighting Mast 10m with 4 LED floodlights 100W"
Galvanized lighting pole tower, 10 meters high. With 4 LED lights. For parking lot, building site or public places.
Recommended for building sites, mining, camps and parking lots.

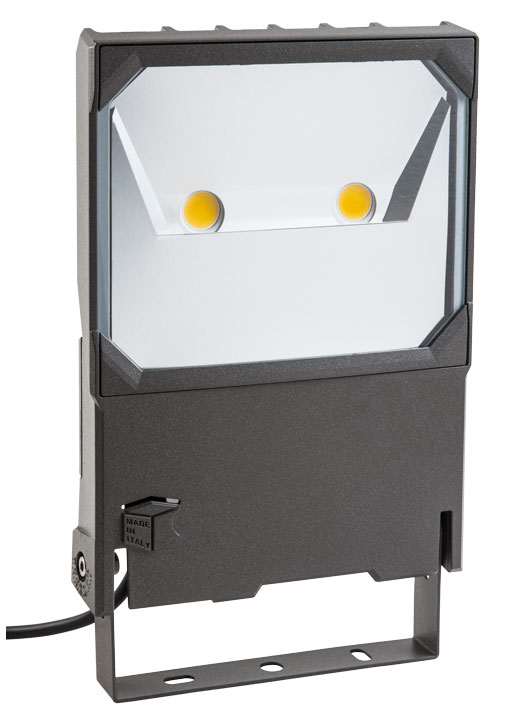

4 bright LED floodlights 100W, in adjustable, stable aluminium casing.
Steel pole resistant to vandalism and environmental influences.
Dip galvanized.
Against surcharge the mast is painted with additional powder coating in any RAL colour.
To DIN EN 40.
With lockable door 85 x 400 mm.
Mast for inground concreting.
Dimensions:
h1 length = 10000 mm
Inground length: 1500mm
Pole top Ø = 76mm
d2 foot Ø = 191 mm
s material strength= 3 mm
Luminous output: 45000 lumen
The brightness is like 4 halogen floodlights each 1000 watt.
Light colour: 4000 K (pure white). on request other colours.
Lighted area Ø aprx. 60 meter
Voltage: 230V / 380V 50 - 60Hz
Very long maintenance-free system lifespan, by use of efficient LED lamps.
20 Years sparepart availability guarantee.
Protection degree lamp head: IP66
Approvals: CE, RoHS, WEEE
4 robust aluminium die-cast LED floodlight projectors, adjustable mounted.
(Complete unit - all inclusive)
* The pictures show samples with different sizes.
4 bright LED floodlights 100W, in adjustable, stable aluminium casing.
Steel pole resistant to vandalism and environmental influences.
Dip galvanized.
Against surcharge the mast is painted with additional powder coating in any RAL colour.
To DIN EN 40.
With lockable door 85 x 400 mm.
Mast for inground concreting.
Dimensions:
h1 length = 10000 mm
Inground length: 1500mm
Pole top Ø = 76mm
d2 foot Ø = 191 mm
s material strength= 3 mm
Luminous output: 45000 lumen
The brightness is like 4 halogen floodlights each 1000 watt.
Light colour: 4000 K (pure white). on request other colours.
Lighted area Ø aprx. 60 meter
Voltage: 230V / 380V 50 - 60Hz
Very long maintenance-free system lifespan, by use of efficient LED lamps.
20 Years sparepart availability guarantee.
Protection degree lamp head: IP66
Approvals: CE, RoHS, WEEE
4 robust aluminium die-cast LED floodlight projectors, adjustable mounted.
(Complete unit - all inclusive)
* The pictures show samples with different sizes.
| Anzahl Leuchten: | 4 |
|---|---|
| Bauform: | Konisch |
| Energieklasse (EEK): | C |
| Leuchtmittel Typ: | LED |
| Lichtstrom Lumen: | 45000 |
| Lichtverteilung Winkel: | 90° |
| Masthöhe: | 10m |
| Montageart: | Aufsatz |
| Optik / Linsenabstrahlung: | Asymmetrisch |
| Schutzklasse: | IP66 |
| Systemspannung: | 220-240V |
| Watt Leuchtmittel : | 100W |
| Watt Total: | 400W |
